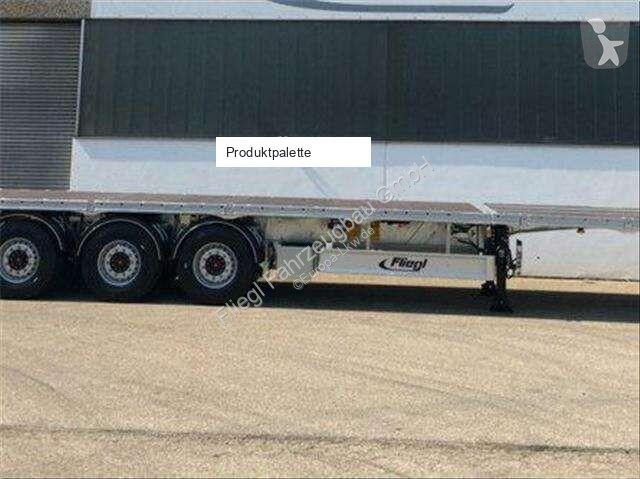

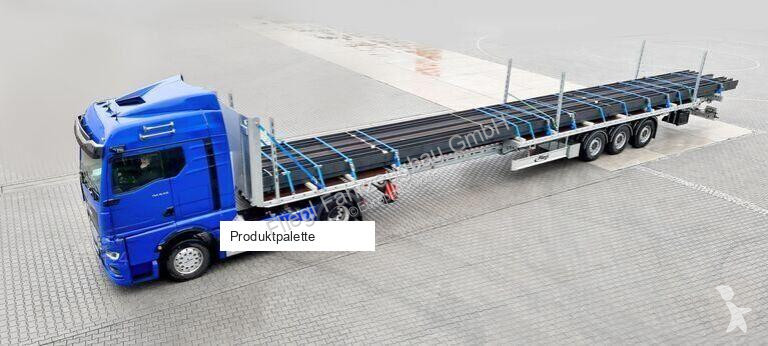

Semirremolque plataforma Fliegl SDS390 nuevo

07819 Triptis
Fliegl

Información principal
Ref. cliente :	Produktpalette
Ref. web :	11509061
Carrocería	Plataforma
Marca	Fliegl
Gama (marca : Fliegl)	SDS390
Estado	Nuevo
Año	-
Fecha 1ª matriculación
País	ALEMANIA
Constructor	Fliegl

Caja de cambios y transmisión
Precisiones caja de cambios	Boîte automatique

Equipamiento Semirremolque Fliegl
Suspensión Neumática

Neumáticos
Estado y dimensiones de los neumáticos	100 %

Suspensión / Ejes
Eje de altura regulable

Comentarios
Localisation : • Allemagne Triptis Informations supplémentaires : • gris Description: Flatbed open Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Note: Stake pockets/plug-in stakes are not designed for the sole securing of long materials, pipes, etc. without strapping Achsenkonfiguration: 3 axles Custom-Made Transport Solution Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are customized according to customer requirements Chassis Saddle and Haulage Company Fine-grained steel welded construction in lightweight design saddle plate with interchangeable 2 kingpins main frame reinforcement for 25 tons with center of gravity at 3 m load length in the retracted state 13 pairs of hooks for securing lashing straps welded onto the crossbeams 23 pairs of lashing eyes recessed into the outer frame each 3.5 tons Outer frame with Load-Lock profile for attaching lashing straps Note! Not usable with sideboards! 24 tons 2-speed support winch in reinforced design for loaded coupling/uncoupling single-sided operation Chocks with holder Aluminum side impact protection Under-run protection Half-shell fenders with anti-splash flaps according to EC 1 spare wheel holder for 1 tire with wheel fastening kit 1 closed storage box for stakes open at the top below the loading area doors on both sides w=450 mm/h=400/420 mm/d=2460 mm 6 pairs of pull-out stake pockets for rectangular section stakes 80x80 mm extendable from loading width of 2000 mm to 3100 mm 4 pairs of stake pockets recessed into the outer frame for rectangular section stakes 80x80 mm 11 stake pockets recessed in the center of the floor for rectangular section stakes 80x80 mm with reinforcement beam installed between the outer stake pockets 5 x 3 pairs of stake pockets recessed into the outer longitudinal beams for rectangular section stakes 80x80 mm including reinforcement beams - for load securing to the front and rear during the transport of reinforcing steel mats 2x5000 mm or 2x 6000 mm 6 lightweight plug-in stakes w=80/d=80/ usable height approx. 1850 mm hot-dip galvanized with rope guide at the top for strap tensioning 12 lightweight plug-in stakes w=80/d=80/ usable height approx. 1850 mm hot-dip galvanized with lashing eyes welded to the bottom on both sides 2 plastic toolboxes with drawer and insert w=650 / h=520 / d=670 mm lockable with a padlock (lock not included) 6 steel winches with wire rope and clevis hook with rope guide through the outer frame 1 removable gearhead for steel winch - supplied loose Telescoping Main frame telescoping extendable by a maximum of 4,000 mm and lockable every approx. 500 mm Locking with pneumatic pin locking + indicator for frame locking on both sides operated via hand knob operation for brake/locking and suspension on the control panel on the left side in front of the axles Storage compartment between the longitudinal beams in the extended state Axles + Suspension SAF disc brake axles with 430 mm disc diameter Last axle with trailing arm with automatic reversing lock via reversing light and additional locking function on the vehicle via hand knob as well as manually via switch in the towing vehicle (Pin 10) without truck installation Axle track offset mm additionally electrically operable from the truck with starting aid Braking System 2-line compressed air braking system Colored line routing for easy servicing Spring brake parking brake Nwo Aoi Ri Szswr Ehxek 2 fail-safe coupling heads at the front EBS manufacturer according to the manufacturer''s choice electronic braking system with EBS
Ver todo

Comentarios

Localisation :
• Allemagne Triptis
Informations supplémentaires :
• gris

Description: Flatbed open
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland

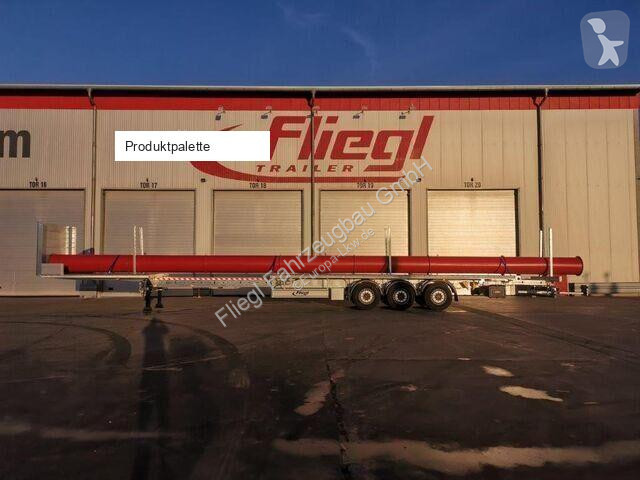

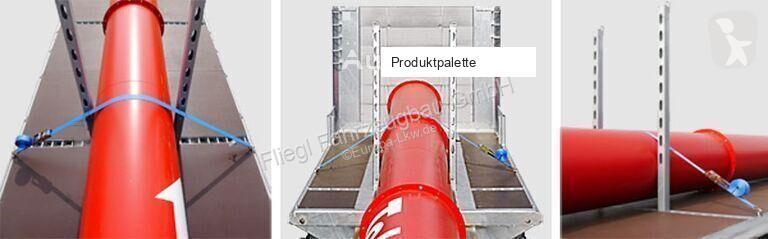

Note: Stake pockets/plug-in stakes are not designed for the sole securing of long materials, pipes, etc. without strapping
Achsenkonfiguration: 3 axles
Custom-Made Transport Solution
Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are customized according to customer requirements
Chassis
Saddle
and Haulage Company
Fine-grained steel welded construction in lightweight design
saddle plate with interchangeable 2 kingpins
main frame reinforcement for 25 tons
with center of gravity at 3 m load length in the retracted state

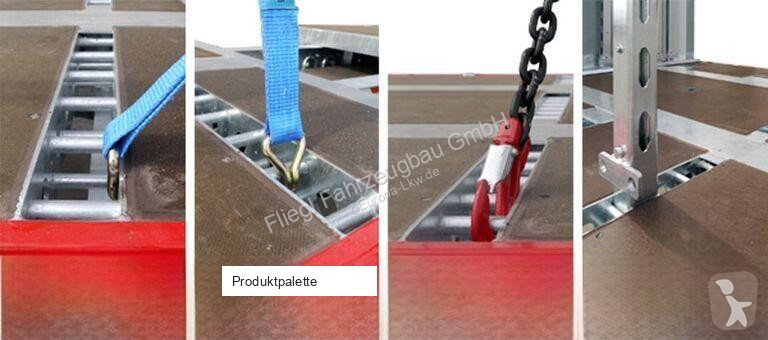

13 pairs of hooks for securing lashing straps
welded onto the crossbeams
23 pairs of lashing eyes recessed into the outer frame
each 3.5 tons
Outer frame with Load-Lock profile for attaching lashing straps
Note! Not usable with sideboards!
24 tons
2-speed support winch in reinforced design for loaded coupling/uncoupling
single-sided operation
Chocks with holder
Aluminum side impact protection
Under-run protection
Half-shell fenders
with anti-splash flaps according to EC
1 spare wheel holder for 1 tire
with wheel fastening kit
1 closed storage box for stakes
open at the top
below the loading area
doors on both sides
w=450 mm/h=400/420 mm/d=2460 mm

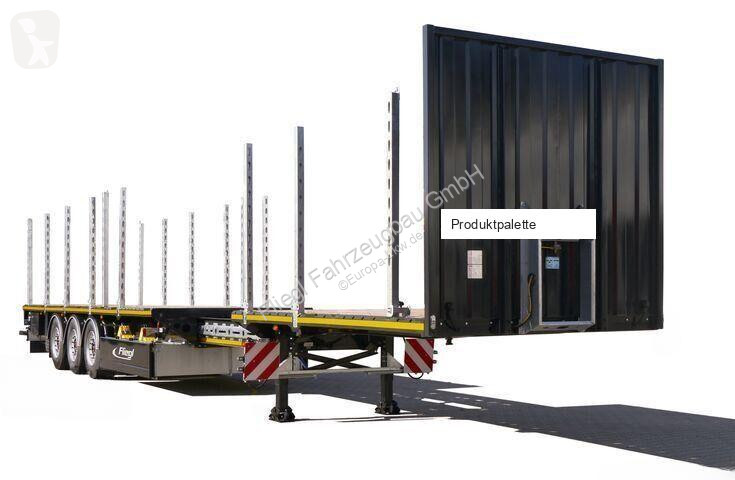

6 pairs of pull-out stake pockets
for rectangular section stakes 80x80 mm
extendable from loading width of 2000 mm to 3100 mm
4 pairs of stake pockets recessed into the outer frame
for rectangular section stakes 80x80 mm
11 stake pockets recessed in the center of the floor
for rectangular section stakes 80x80 mm
with reinforcement beam
installed between the outer stake pockets
5 x 3 pairs of stake pockets recessed into the outer longitudinal beams
for rectangular section stakes 80x80 mm
including reinforcement beams - for load securing to the front and rear during the transport of reinforcing steel mats
2x5000 mm or 2x 6000 mm
6 lightweight plug-in stakes
w=80/d=80/
usable height approx. 1850 mm
hot-dip galvanized
with rope guide at the top for strap tensioning
12 lightweight plug-in stakes
w=80/d=80/
usable height approx. 1850 mm
hot-dip galvanized
with lashing eyes welded to the bottom on both sides
2 plastic toolboxes
with drawer and insert
w=650 / h=520 / d=670 mm
lockable with a padlock (lock not included)
6 steel winches with wire rope and clevis hook
with rope guide through the outer frame
1 removable gearhead for steel winch - supplied loose
Telescoping

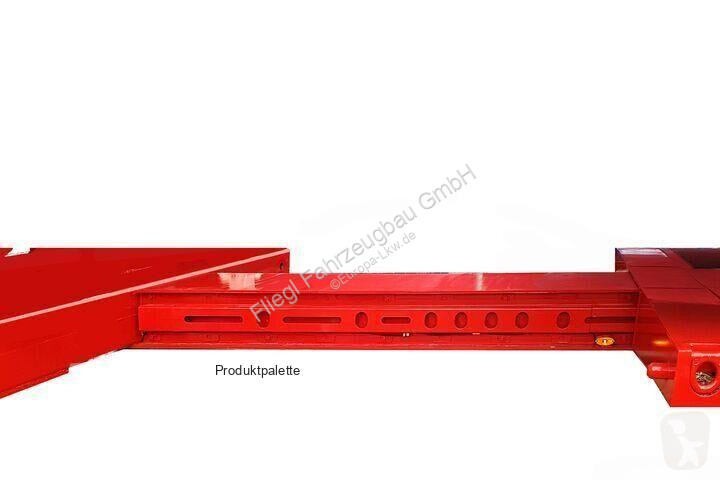

Main frame telescoping
extendable by a maximum of 4,000 mm and lockable every approx. 500 mm
Locking with pneumatic pin locking + indicator for frame locking on both sides
operated via hand knob
operation for brake/locking and suspension on the control panel on the left side in front of the axles
Storage compartment between the longitudinal beams in the extended state

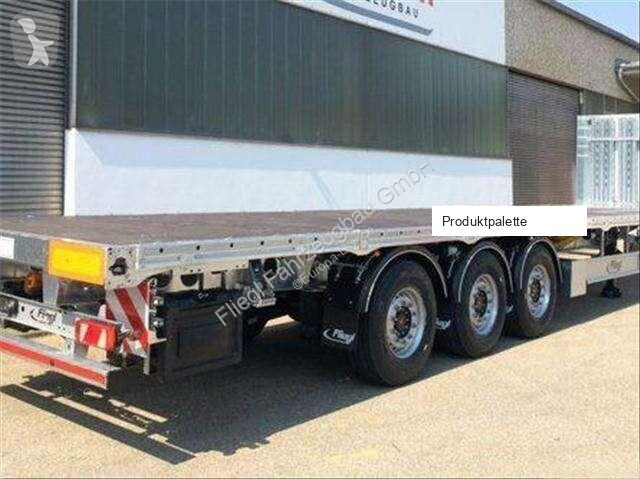

Axles + Suspension
SAF disc brake axles with 430 mm disc diameter
Last axle with trailing arm
with automatic reversing lock via reversing light
and additional locking function on the vehicle via hand knob
as well as manually via switch in the towing vehicle (Pin 10)
without truck installation
Axle track offset mm
additionally electrically operable from the truck
with starting aid
Braking System
2-line compressed air braking system
Colored line routing for easy servicing
Spring brake parking brake
Nwo Aoi Ri Szswr Ehxek
2 fail-safe coupling heads at the front
EBS manufacturer according to the manufacturer''s choice
electronic braking system with EBS

Ver todo

Comentarios
Localisation : • Allemagne Triptis Informations supplémentaires : • gris Description: Flatbed open Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Note: Stake pockets/plug-in stakes are not designed for the sole securing of long materials, pipes, etc. without strapping Achsenkonfiguration: 3 axles Custom-Made Transport Solution Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are customized according to customer requirements Chassis Saddle and Haulage Company Fine-grained steel welded construction in lightweight design saddle plate with interchangeable 2 kingpins main frame reinforcement for 25 tons with center of gravity at 3 m load length in the retracted state 13 pairs of hooks for securing lashing straps welded onto the crossbeams 23 pairs of lashing eyes recessed into the outer frame each 3.5 tons Outer frame with Load-Lock profile for attaching lashing straps Note! Not usable with sideboards! 24 tons 2-speed support winch in reinforced design for loaded coupling/uncoupling single-sided operation Chocks with holder Aluminum side impact protection Under-run protection Half-shell fenders with anti-splash flaps according to EC 1 spare wheel holder for 1 tire with wheel fastening kit 1 closed storage box for stakes open at the top below the loading area doors on both sides w=450 mm/h=400/420 mm/d=2460 mm 6 pairs of pull-out stake pockets for rectangular section stakes 80x80 mm extendable from loading width of 2000 mm to 3100 mm 4 pairs of stake pockets recessed into the outer frame for rectangular section stakes 80x80 mm 11 stake pockets recessed in the center of the floor for rectangular section stakes 80x80 mm with reinforcement beam installed between the outer stake pockets 5 x 3 pairs of stake pockets recessed into the outer longitudinal beams for rectangular section stakes 80x80 mm including reinforcement beams - for load securing to the front and rear during the transport of reinforcing steel mats 2x5000 mm or 2x 6000 mm 6 lightweight plug-in stakes w=80/d=80/ usable height approx. 1850 mm hot-dip galvanized with rope guide at the top for strap tensioning 12 lightweight plug-in stakes w=80/d=80/ usable height approx. 1850 mm hot-dip galvanized with lashing eyes welded to the bottom on both sides 2 plastic toolboxes with drawer and insert w=650 / h=520 / d=670 mm lockable with a padlock (lock not included) 6 steel winches with wire rope and clevis hook with rope guide through the outer frame 1 removable gearhead for steel winch - supplied loose Telescoping Main frame telescoping extendable by a maximum of 4,000 mm and lockable every approx. 500 mm Locking with pneumatic pin locking + indicator for frame locking on both sides operated via hand knob operation for brake/locking and suspension on the control panel on the left side in front of the axles Storage compartment between the longitudinal beams in the extended state Axles + Suspension SAF disc brake axles with 430 mm disc diameter Last axle with trailing arm with automatic reversing lock via reversing light and additional locking function on the vehicle via hand knob as well as manually via switch in the towing vehicle (Pin 10) without truck installation Axle track offset mm additionally electrically operable from the truck with starting aid Braking System 2-line compressed air braking system Colored line routing for easy servicing Spring brake parking brake Nwo Aoi Ri Szswr Ehxek 2 fail-safe coupling heads at the front EBS manufacturer according to the manufacturer''s choice electronic braking system with EBS

Comentarios

Tarifa de venta

Precio bajo pedido
